Deliverable 3 — Soroban Smart Contract Integration

Status: Complete
Branch: main

---

Grant Requirements

Functional APIs for subscription workflows using Soroban contracts. Comprehensive documentation and example integrations.

---

Smart Contract

Source: contracts/soroban/src/lib.rs
Status: Deployed and validated on testnet.
Network: Stellar Testnet
Soroban SDK: 25.3.1
Build: wasm32v1-none (stellar-cli 26.0)

Testnet deployment

Field	Value
Contract ID	CAH3T7NSZMZTX2KPKK5IKKMCKE4ZDYVK4OO64OISB6OY7W3OLS6OJJMP
WASM hash	5f72dd9ce62f3c7e3f7c21d428c5a1e7284edbbdeae9a7ec3e3727a6b98ef285
Upload tx	fa3402c8…
Deploy tx	86be0ca7…

Testnet lifecycle validation

The full subscription flow was exercised end-to-end on testnet against the deployed contract. The trigger transaction emitted a real transfer event from the XLM SAC: subscriber → recipient, 10000000 stroops (1 XLM), pulled by the contract via transfer_from.

Action	Result	Tx hash
create (subscriber, XLM SAC, recipient, 1 XLM, 60s)	id 1 returned, Create event emitted	71aa2744…
approve (XLM SAC → contract, 100 XLM)	allowance set	e3d66eab…
trigger (after 60s)	1 XLM transferred on-chain, Trigger event emitted	62622e13…
cancel	active=false, Cancel event emitted	4fa14ecf…

Subscriber: GBZCJYXOJ5U26Q5PCZJ3G5VBBRUHU7ZPMY3JCXGSCFF4WZQYS46ZKNVD
Recipient: GBYTXEWYKEYSCJEYCRO7P7WPZSWNWLOS7LNXBPA3Q7USHHRQW2ZERQY3
Token (native XLM SAC): CDLZFC3SYJYDZT7K67VZ75HPJVIEUVNIXF47ZG2FB2RMQQVU2HHGCYSC

Contract interface

Lifecycle

Function	Arguments	Returns	Auth
__constructor(owner)	Address	—	owner (atomic at deploy)
create(subscriber, token, recipient, amount, interval)	Address × Address × Address × i128 × u64	u64 (subscription id)	subscriber
trigger(id)	u64	—	permissionless
trigger_n(id, count)	u64 × u32	—	permissionless
cancel(id)	u64	—	subscriber
get(id)	u64	Subscription	—

Admin (owner-only)

Function	Arguments	Returns	Auth
pause() / unpause()	—	—	owner
transfer_ownership(new_owner)	Address	—	owner and new_owner (atomic 1-step)
upgrade(new_wasm_hash)	BytesN<32>	—	owner

Subscription struct

pub struct Subscription {
    pub subscriber: Address,
    pub token: Address,
    pub recipient: Address,
    pub amount: i128,
    pub interval: u64,     // seconds between payments (1..=MAX_INTERVAL = 10 years)
    pub next_payment: u64, // Unix timestamp, anchored on the schedule (no drift)
    pub active: bool,
}

Payment flow

The contract uses the transfer_from pattern: the subscriber must first call token.approve(contract_address, amount) to authorize the contract to pull tokens. trigger() and trigger_n() can then be called by anyone (keeper, recipient, bot) once the payment is due — the allowance is the consent.

Key invariants:

• No drift: next_payment advances by exactly interval per cycle, anchored on the schedule, not on the wall-clock time of the trigger.
• Catch-up: when n cycles have been missed, call trigger_n(id, n) to settle them atomically in a single transfer_from. The contract silently caps at min(count, due_cycles).
• Recipient locked at creation: prevents a third-party caller from redirecting funds.

Security design

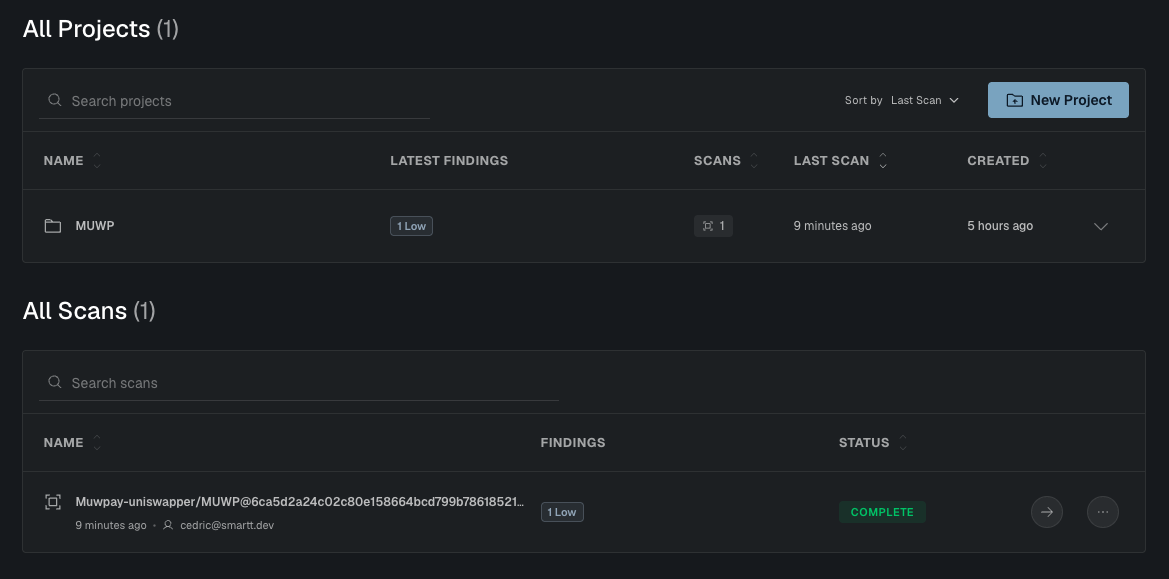

The contract was scanned with Almanax.ai, an automated security auditor for Soroban smart contracts. The scan completed with 1 Low severity finding — no Medium, High, or Critical issues were detected. The Low finding (governance TTL not refreshed by user calls) was addressed before testnet deployment: Owner and Paused TTLs are now bumped inside require_not_paused and require_owner, so every user call (create, trigger, trigger_n) keeps the governance state alive without requiring periodic admin intervention.

The measures below are implemented in contracts/soroban/src/lib.rs and each has dedicated regression tests in the embedded Rust suite.

Reentrancy & state safety. trigger and trigger_n follow the checks-effects-interactions pattern: the subscription's next_payment is persisted before the external transfer_from call, so a malicious (subscriber-supplied) token contract cannot reenter and double-pull a cycle.

Overflow safety. interval is bounded to 1..=MAX_INTERVAL (10 years) at creation. Every arithmetic step on next_payment, cycle counts and total amounts uses checked_add / checked_mul and surfaces a dedicated ArithmeticOverflow error instead of silent wrap.

Atomic initialization. Ownership is set by a Soroban __constructor, invoked exactly once at deployment. This closes the front-running window that a two-step deploy + initialize flow would expose.

Access control. Admin entrypoints (pause, unpause, transfer_ownership, upgrade) are owner-gated. transfer_ownership is atomic and requires signatures from BOTH the current owner and the new owner in the same transaction — a wrong or compromised target address cannot be set without it explicitly authorising the transfer (the wrong key cannot sign). trigger and trigger_n are explicitly permissionless — the subscriber's allowance is the consent, and the recipient is locked at creation so funds cannot be redirected.

Address validation. create rejects token == self and recipient == self to avoid stranded funds or recursive transfer_from calls on the contract itself.

Upgradability. upgrade(new_wasm_hash) lets the owner hot-swap the contract WASM for bug fixes. It is intended to be used together with pause and off-chain review of the hash.

Persistent ID counter. The subscription ID counter lives in persistent storage, so IDs keep incrementing strictly even if instance storage expires — ruling out collisions with still-persistent subscriptions.

Persistent, fail-closed governance state. Owner and Paused live in persistent storage (not instance storage) and their TTL is bumped on every admin write. If the Paused entry is ever missing, require_not_paused panics with NotInitialized rather than defaulting to unpaused. This closes an Almanax MEDIUM finding: with instance storage + unwrap_or(false), a long emergency-pause window with no successful calls to bump TTL could have silently expired the flag and resumed create / trigger while admin entrypoints simultaneously became unusable.

Observability. Every admin action emits a typed event (init, pause, unpause, own_xfer, upgrade) for off-chain indexers and monitoring.

Embedded Rust tests

cd contracts/soroban && cargo test

running 37 tests
test tests::test_create_returns_id ... ok
test tests::test_get_subscription ... ok
test tests::test_cancel_subscription ... ok
test tests::test_trigger_after_interval ... ok
test tests::test_trigger_no_drift ... ok
test tests::test_trigger_is_permissionless ... ok
test tests::test_trigger_before_due_fails - should panic ... ok
test tests::test_trigger_after_cancel_fails - should panic ... ok
test tests::test_pause_prevents_create - should panic ... ok
test tests::test_pause_prevents_trigger - should panic ... ok
test tests::test_pause_without_owner_auth_fails - should panic ... ok
test tests::test_unpause_allows_trigger ... ok
test tests::test_create_zero_amount_fails - should panic ... ok
test tests::test_create_negative_amount_fails - should panic ... ok
test tests::test_create_zero_interval_fails - should panic ... ok
test tests::test_create_interval_too_large_fails - should panic ... ok
test tests::test_create_interval_u64_max_fails - should panic ... ok
test tests::test_create_interval_at_max_bound_succeeds ... ok
test tests::test_create_recipient_is_contract_fails - should panic ... ok
test tests::test_create_token_is_contract_fails - should panic ... ok
test tests::test_double_cancel_is_idempotent ... ok
test tests::test_counter_increments_monotonically ... ok
test tests::test_transfer_ownership_succeeds ... ok
test tests::test_transfer_ownership_without_owner_auth_fails - should panic ... ok
test tests::test_transfer_ownership_without_new_owner_auth_fails - should panic ... ok
test tests::test_upgrade_requires_owner - should panic ... ok
test tests::test_trigger_n_catches_up_multiple_cycles ... ok
test tests::test_trigger_n_caps_at_due_cycles ... ok
test tests::test_trigger_n_one_matches_trigger ... ok
test tests::test_trigger_n_zero_count_fails - should panic ... ok
test tests::test_trigger_n_before_due_fails - should panic ... ok
test tests::test_trigger_n_after_cancel_fails - should panic ... ok
test tests::test_trigger_n_when_paused_fails - should panic ... ok
test tests::test_trigger_n_is_permissionless ... ok
test tests::test_trigger_fails_closed_when_paused_entry_missing - should panic ... ok
test tests::test_create_fails_closed_when_paused_entry_missing - should panic ... ok
test tests::test_pause_fails_when_owner_entry_missing - should panic ... ok

test result: ok. 37 passed; 0 failed

---

SDK Service

File: packages/sdk/src/services/SorobanSubscriptionService.ts

Contract surface coverage: the four core methods shown below (create, trigger, cancel, get) cover the primary subscription lifecycle. SDK bindings for the additional contract entrypoints (trigger_n, pause, unpause, transfer_ownership, upgrade) are available directly via the Stellar CLI or the Soroban SDK for advanced use cases.

import { SorobanSubscriptionService } from "@muwp/sdk";
import { Networks } from "@stellar/stellar-sdk";

const service = new SorobanSubscriptionService({
  sorobanUrl: "https://soroban-testnet.stellar.org",
  networkPassphrase: Networks.TESTNET,
});

// Create a recurring subscription: 10 USDC every hour
const id = await service.createSubscription({
  contractId: "C...",
  callerSecret: "S...",
  token: "CBIELTK6YBZJU5UP2WWQEUCYKLPU6AUNZ2BQ4WWFEIE3USCIHMXQDAMA",
  recipient: "G...",
  amount: 10_000_000n,   // 10 tokens with 6 decimals
  intervalSeconds: 3600,
});

// Trigger the payment when due
const txHash = await service.triggerPayment({
  contractId: "C...",
  callerSecret: "S...",
  subscriptionId: id,
});

// Cancel the subscription
await service.cancelSubscription({
  contractId: "C...",
  subscriberSecret: "S...",
  subscriptionId: id,
});

// Read a subscription
const sub = await service.getSubscription("C...", id);
console.log(sub.active, sub.nextPayment);

Methods

Method	Parameters	Returns
createSubscription(params)	CreateSubscriptionParams	Promise<number> (id)
triggerPayment(params)	TriggerPaymentParams	Promise<string> (tx hash)
cancelSubscription(params)	CancelSubscriptionParams	Promise<string> (tx hash)
getSubscription(contractId, id)	string, number	Promise<Subscription>

---

Tests

File: packages/sdk/tests/subscription.spec.ts

✓ createSubscription: calls sendTransaction and returns a subscription id
✓ createSubscription: throws when simulation returns an error
✓ cancelSubscription: sends a cancel transaction and returns the hash
✓ triggerPayment: sends a trigger transaction and returns the hash

cd packages/sdk && bun run test tests/subscription.spec.ts

---

Example

File: packages/sdk/examples/04-soroban-subscription.ts

cd packages/sdk

# Offline mode (demo — every step prints an expected network error)
bun run examples/04-soroban-subscription.ts

# With real testnet keys
SUBSCRIBER_SECRET=S... CONTRACT_ID=C... bun run examples/04-soroban-subscription.ts

---

File layout

contracts/soroban/
├── Cargo.toml
└── src/lib.rs                         ← Soroban contract (Rust)

packages/sdk/
├── src/
│   ├── services/
│   │   └── SorobanSubscriptionService.ts   ← SDK service
│   └── types/
│       └── subscription.ts                 ← Types + Zod schemas
├── tests/
│   └── subscription.spec.ts               ← 4 unit tests
└── examples/
    └── 04-soroban-subscription.ts         ← End-to-end example
